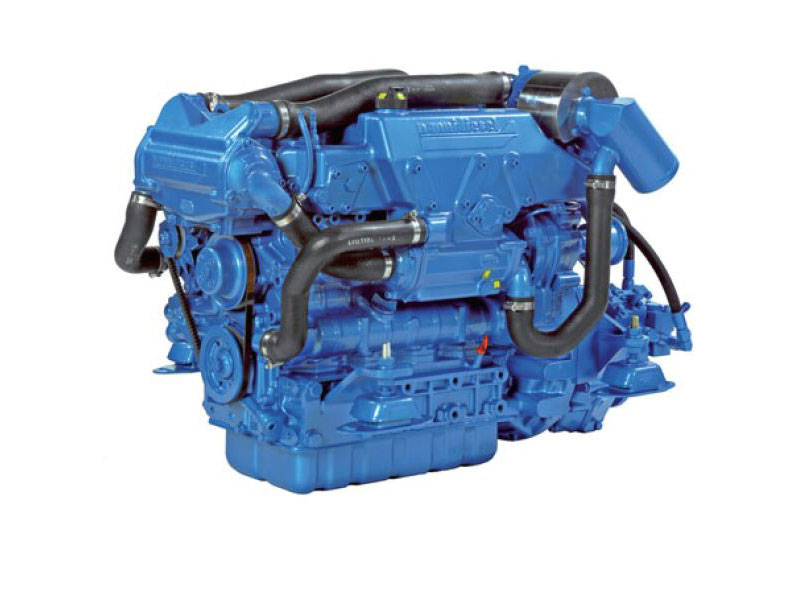

N4.100
| Description | Diesel Engine |
| Base Engine | Kubota |
| HP | 100 |
| Cylinders | 4 |
| Max RPM | 2800 |
| Displacement (Litres) | 3,053 |
| Weight (KG) | 360 |
Downloads
| Engine Specifications Sheet | N4.100 Specifications |
| User Manual | User Manual N4.100 |
| Line Drawing | N4.100 TM345A |
| Line Drawing 2 | N4.100 TTM40A |
| Line Drawing 3 | N4.100 TM93 |
| Line Drawing 4 | N4.100 ZF25A |
| Line Drawing 5 | N4.100 ZF45A |
| Wiring Diagram | Wiring Diagram N4.100 |
| Wiring Diagram 2 | WD N4.100 NEW KTN12110239 |
The N4.100 offers high power, low noise, superior endurance and above all, reliability. This engine’s design has ensured it as a preferred power choice for a wide range of heavy duty applications.
Unique cylinder block allowing for maximum displacement (cc) within a compact design, ideal for space critical applications.
The N4.100 is equipped with the E-CDIS injection system featuring a central injector and four valves per cylinder achieving low noise & vibration levels.
